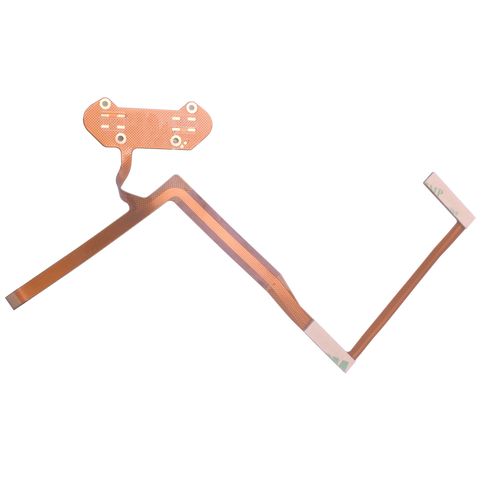

Prototype Flexible PCB Fabrication

Conditions

Why choose flexible printed circuit boards

Flexible circuit boards are on a rise because of their ability to deliver enhanced performance against the gruelling demands of 21st century products. Flexible printed circuit boards have a significant advantage over rigid printed circuit boards because they are compact in nature. For more information, please contact us at info@nexpcb.com.

Just several weeks get your design ready, with high quality, fast delivery, and low cost. NexPCB offers ROHS, IPC-A-600F, ISO9001 EMS services since 2005.

Conditions
Layer 1-10 layers PI Stiffeners 0.05-0.5mm
Based Copper thickness 1/30Z-20Z FR4 Stiffeners 0.1-3.0mm
Finished Copper thickness 1/20Z-30Z Steel Stiffeners 0.1-1.0mm
Board thickness 0.08-1.0mm Impedance control (tolerance) 10%
Maximum board size 200 x 800mm Minimum ring size 0.15mm
Hole size 0.15-6.4mm Minimum line width/space 0.075/0.075mm
HDI countersink 2+n+2
