Wants your product be intelligent, precise and flexible?
Wants to save more spaces for your product?

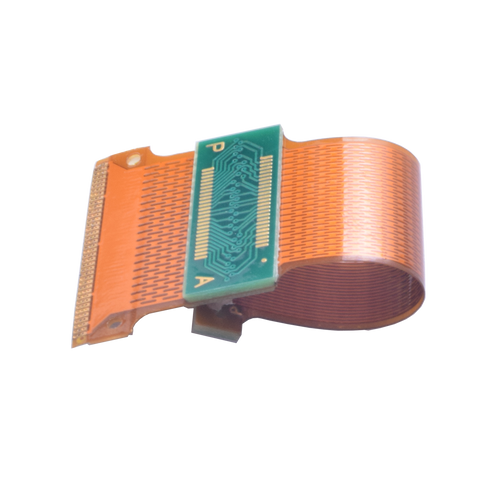

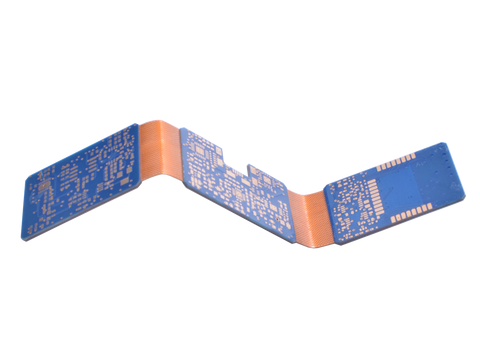

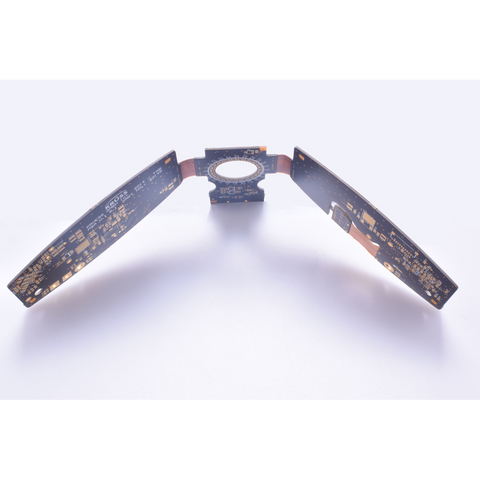

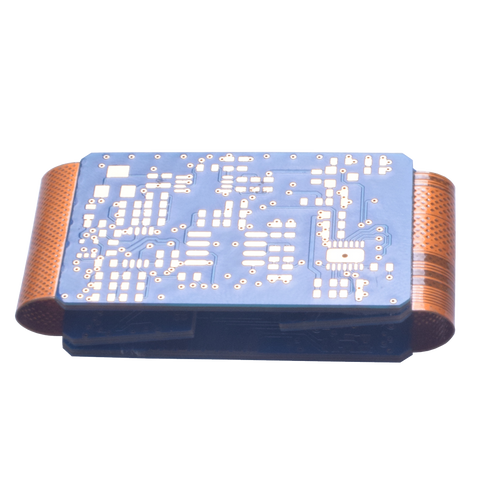

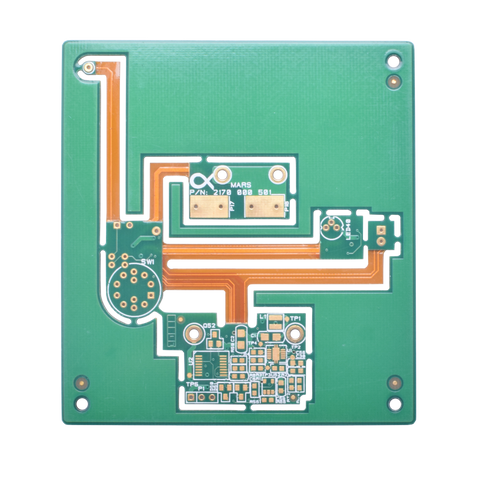

Here, NexPCB provides various sizes and layers Rigid Flex PCBs which can meet different requirements. For more information, please contact us at info@nexpcb.com.
Just several weeks get your design ready, with high quality, fast delivery, and low cost. NexPCB offers ROHS, IPC-A-600F, ISO9001 EMS services since 2005.
| Conditions | |||
|---|---|---|---|
| Layer | 2-20 layers | PI Stiffeners | 0.05-0.5mm |
| Based Copper thickness | 1/30Z-20Z | FR4 Stiffeners | 0.1-3.0mm |
| Finished Copper thickness | 1/20Z-30Z | Steel Stiffeners | 0.1-1.0mm |
| Board thickness | 0.3-6.0mm | Impedance control (tolerance) | 10% |
| Maximum board size | 200 x 500mm | Minimum ring size | 0.15mm |
| Hole size | 0.15-6.4mm | Minimum line width/space | 0.075/0.075mm |
| HDI countersink | 2+n+2 | ||
Additional
- Free Shipment Via DHL Or UPS
- ROHS, IPC - A - 600F, ISO9001
- 100% Money Back Guarantee
- Order Flow
